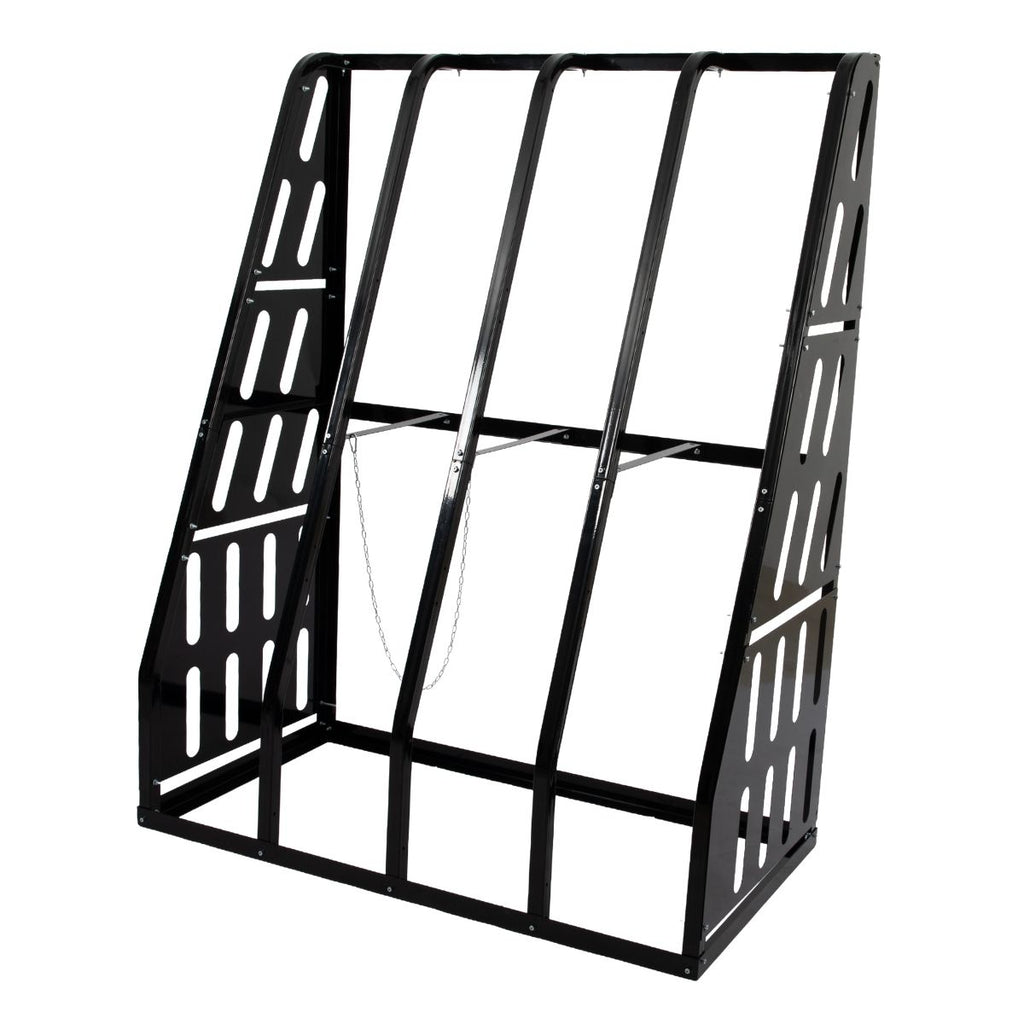

Heavy-Duty Vertical Storage for Long & Oversized Materials

The MROPURCHASE Vertical Pipe Storage Rack is engineered for industrial environments, bulk storage operations, and professional facilities that require safe, organized, and space-efficient storage of long materials. Designed for durability and load performance, this rack supports up to 6,000 lbs. total capacity, making it ideal for warehouses, manufacturing plants, fabrication shops, and distribution centers.

Load Capacity & Bay Configuration

• Total load capacity: 6,000 lbs

• Per-bay capacity: Up to 1,500 lbs (evenly distributed)

• (4) vertical bays, each 10" wide, for organized material separation

• Suitable for storing steel bars, pipes, lumber, tubing, plywood, rods, cylinders, and raw building materials

Materials are stored upright and separated, allowing quick identification, safer handling, and improved workflow efficiency.

Industrial-Grade Steel Construction

• Manufactured from 14-gauge heavy-duty steel for superior strength and structural integrity

• Black powder-coated finish provides corrosion resistance and long-term durability in demanding environments

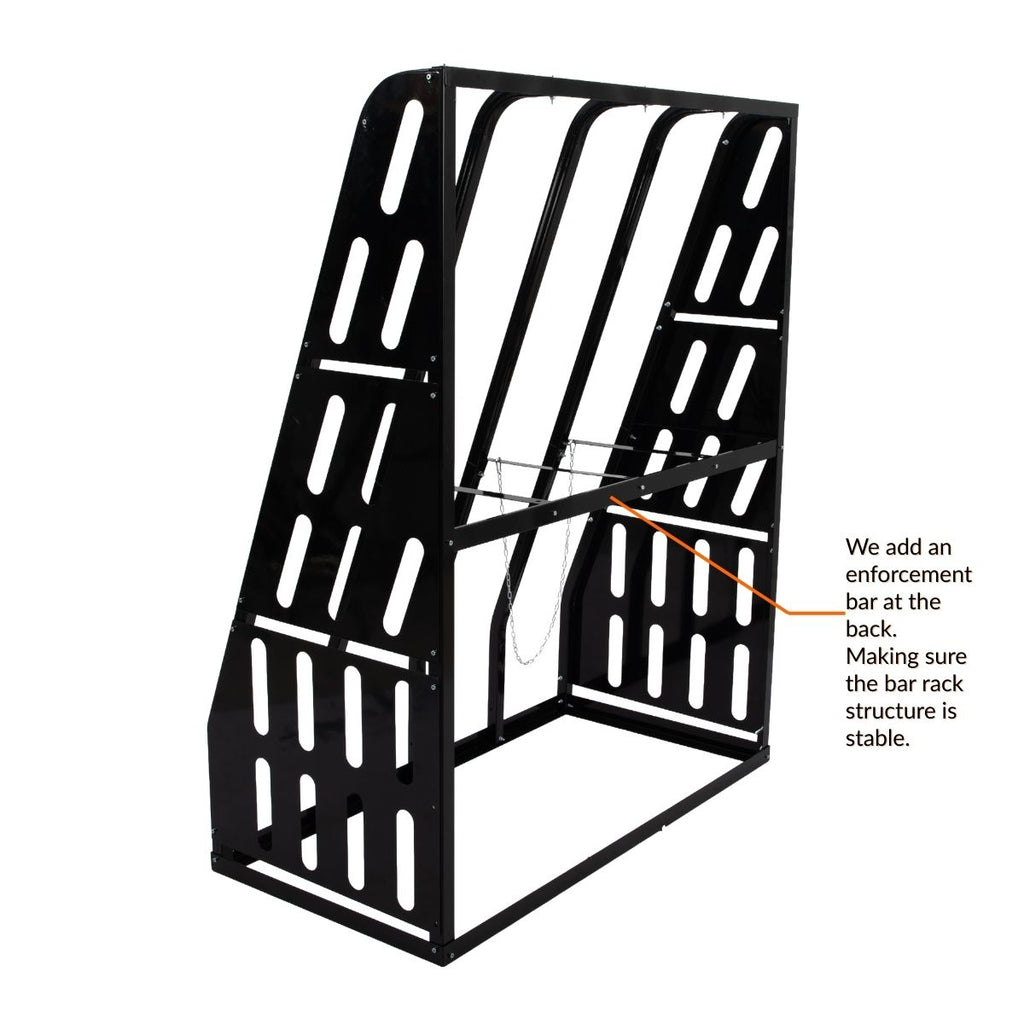

• Rigid welded frame design minimizes flexing under load

Built to meet the expectations of MRO buyers, contractors, and facility managers purchasing in volume.

Safety & Material Retention

• Each bay features pre-drilled chain slots to prevent materials from tipping or shifting

• Includes galvanized safety chains with snap hooks for secure material containment

• Designed to keep long and heavy items safely stored in a vertical position

For optimal safety, anchoring to the floor is recommended prior to use.

Space-Saving Vertical Design

• Vertical storage orientation maximizes floor space efficiency

• Compact footprint allows placement in areas with sufficient ceiling height

• Ideal for organizing irregular lengths and odd-shaped materials that are difficult to store horizontally

Assembly & Expandability

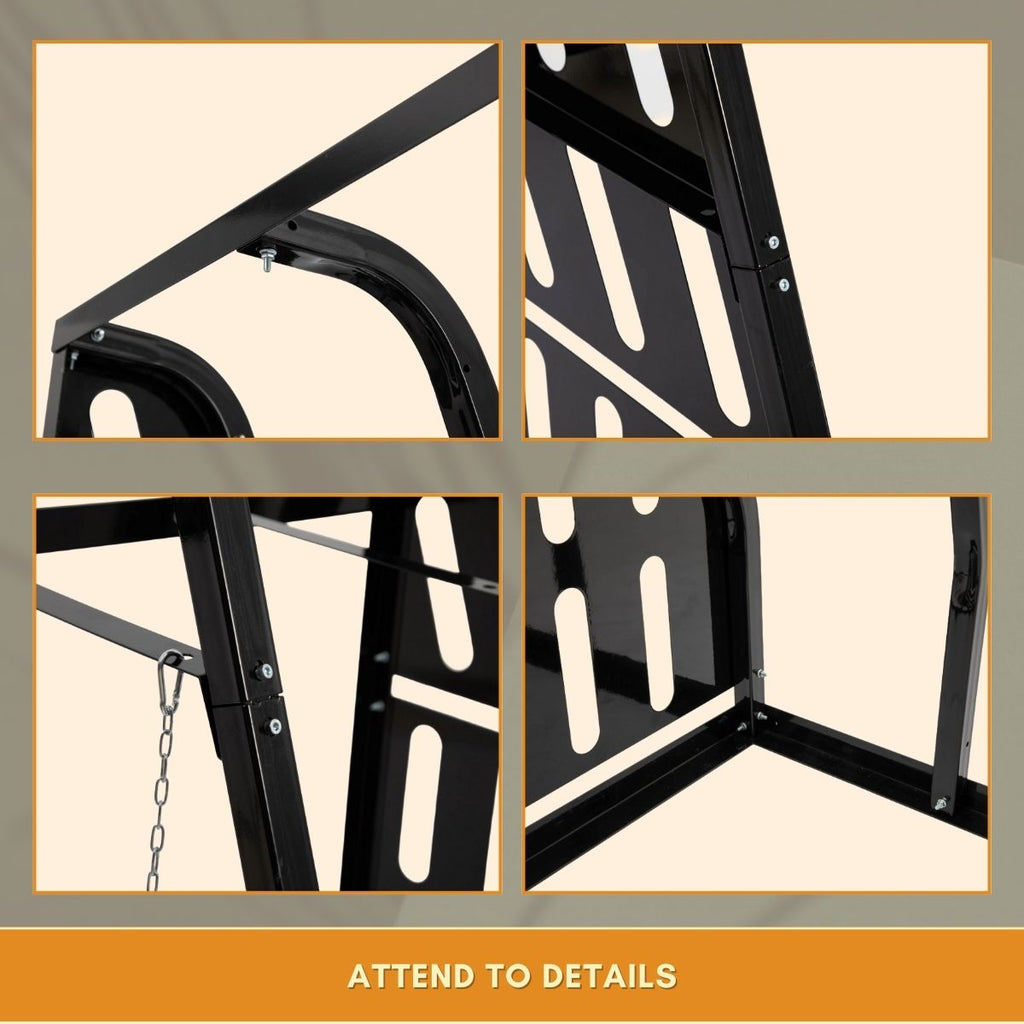

• Bolt-on assembly required; hardware and instructions included

• Open-access design allows easy loading and unloading

• Multiple units can be installed in-line or back-to-back for scalable storage solutions

Product Specifications

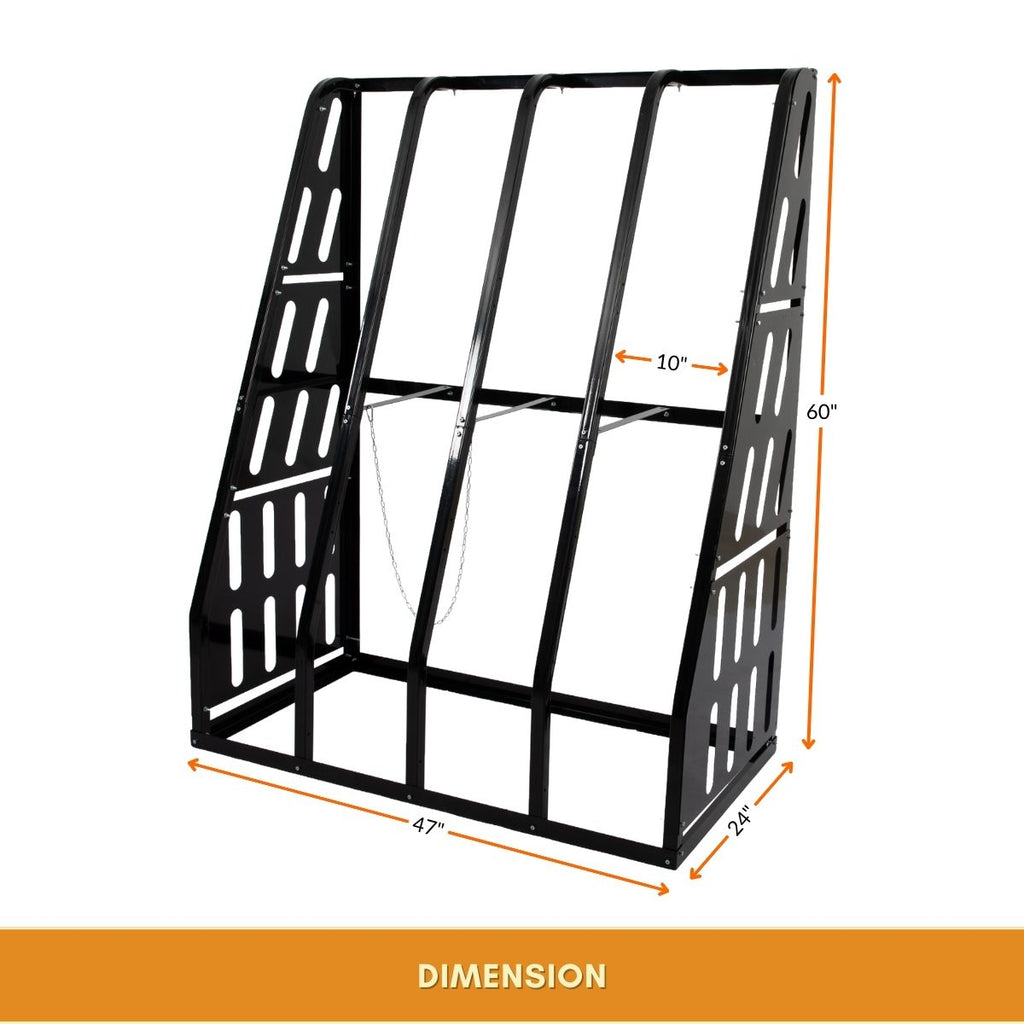

• Overall Dimensions: 47"W x 24"D x 60"H
• Bay Count: 4
• Bay Width: 10" each
• Load Capacity: 6000 lbs. in total. 1500 lbs. for each bay.
• Material: 14-gauge steel
• Finish: Black powder coat
• Application: Warehouse, factory, manufacturing, MRO, industrial storage, garage, shed
• For proper load performance and stability, the rack should be positioned against a wall during use.



Spec Sheet

• DOWNLOAD a spec sheet
•
